Boss Industrial 27, 32, 37 Ton H/V Gas Log Splitter Parts WD27T, WD32T, and WD37T

Boss Log Splitters

WD Parts #1-77

9 In Stock

310-659

-
+

Buy Boss Industrial 27, 32, 37 Ton H/V Gas Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

Please refer to the Table below to choose the parts correctly.



REF # PART # PART NAME SPECIFICATIONS QTY PER UNIT
1 310-659 Beam incl. End Plate 27 Ton 10/10/2010
310-347 Beam incl. End Plate 32 Ton 10/12/2010 1
310-472 Beam incl. End Plate 37 Ton 12/12/2012
2 530-421 Splitting Wedge w/ Guides 27 Ton Guide12, 7” 1
530-422 Splitting Wedge w/ Guides 32 Ton Guide12, 8”
530-423 Splitting Wedge w/ Guides 37 Ton Guide14, 8”
3 760-118 Pin PH, Ø16*69-Ø4.5 1
4.1 750-566 Flat Washer PH, M16 2
4.2 760-734 Split Pin ZP, Ø4*35 2
  530-468 Cylinder 27 Ton 4.0 in. * 22.6in.
5 530-473 Cylinder 32 Ton 4.5 in. * 22.6in. 1
  530-485 Cylinder 37 Ton 5.0 in. * 22.6in.
6 760-112 Pin PH, Ø20*72-Ø3.5 1
7 750-423 Flat Washer PH, M20 2
8 760-755 Split Pin ZP, Ø3*40 2
9.1 510-356 Adapter 90 Degree, Hex19/ Hex24 1
9.2 730-077 O Seal Ring Ø21*2.4 1
10 560-427 Hydraulic Hose for A-Capacity 1
11 510-356 Hydraulic Adaptor for A-Capacity 90 Degree, Hex19/ Hex24, 3/4-3/4 1
12 730-077 O Seal Ring Ø21*2.4 1
13.1 510-464 Hydraulic Adaptor for B-Capacity Straight, Hex27*43, 3/4-3/4 1
13.2 730-077 O Seal Ring Ø21*2.4 2
14.1 520-799 Hydraulic Valve  1
14.2 520-452 Control Handle Ø15*220, Ball Grip 1
15.1 560-454 Connecting Hydraulic Hose w/ Protection Sleeve ½”*900 1
15.2 730-619  O Seal Ring Ø15*1.9 2
16.1 730-088 O Seal Ring Ø24*2.4 1
16.2 510-448 Hydraulic Adapter on Valve for Connecting Hose Straight, Hex27*36, 7/8-13/16 1
17 560-523 Oil Return Hose w/ Protection Sleeve 1/2*1400 1
18.1 510-469 Hydraulic Adapter 90 Degree,  Hex27, 7/8- 13/16 1
18.2 730-088 O Seal Ring Ø24*2.4 1
18.3 730-619 O Seal Ring Ø15*1.9 1
19 520-532 Handle Release Lever WD 1
20 520-578 Extension Spring Ø8*53 1
21 350-224 Valve Cover WD 1
22 710-637 Hex Head Bolt ZP, M8*20  4
23 750-834 Spring Washer ZP, M8 4
24 750-638 Flat Washer ZP, M8 4
25 510-432 Hydraulic Adapter on Pump for Connecting Hose Straight, Hex27*45, NPT1/2- 13/16 1
26 550-412 Two Stage Pump 11gpm (27T) 1
550-416 Two Stage Pump 13gpm (32T)
550-533 Two Stage Pump 16gpm (37T)
27.1 550-702 Coupling Shaft 3/4” (27/32T) 1
550-703 Coupling Shaft 1” (37T)
27.2 550-706 Coupling Spider 1
28 740-600 Set Screw PH, M6*10 2
29 550-814 Pump Mount Al,  27 / 32T 1
550-818 Pump Mount Al, 37T
30 710-637 Hex Head Bolt ZP, M8*20  4
31 750-638 Flat Washer  ZP, M8 4
32 750-834 Spring Washer ZP, M8 4
33 710-632 Hex Head Bolt ZP, 5/16-24*20  4
34 750-617 Flat Washer ZP, 5/16 4
35 750-844 Spring Washer ZP, 5/16 4
36 770-123 Engine Shaft Square Key 3/16 X 1.75 (27 / 32T) 1
770-125 Engine Shaft Square Key 1/4 X 2.165 (37T)
  CR950* Gas Engine (B&S) 27T
37 XR1150 Gas Engine (B&S) 32T 1
  XR1450 Gas Engine (B&S) 37T
38 710-693 Hex Head Bolt ZP, M8*40 (27 / 32T)  4
710-553 Hex Head Bolt ZP, M10*40(37T)
39.1 750-638 Flat Washer  ZP, M8 (27 / 32T)  8
750-525 Flat Washer ZP, M10 (37T)
39.2 960-429 Vibration Isolator 27 / 32Ton Ø24*Ø9*3 4
960-430 Vibration Isolator 37 Ton Ø24*Ø11*3
40 720-500 Lock Nut ZP, M8 (27 / 32T)  4
720-120 Lock Nut ZP, M10 (37T)
41 540-925 Reservoir Tank WD27T 1
540-932 Reservoir Tank WD32 / 37T
42 540-329 Vented Dipstick Ø4.35*186 1
44 710-877 Oil Drain Screw PH, M16*15 1
45 730-064 O Seal Ring Ø20*2.4 1
46.1 510-429 Hydraulic Adapter 45 Degree, Hex27-32, 1 1/16-12  1
46.2 540-048 Suction Filter Hex50, NPT1 1/2*23, Ø41*75 1
47 560-342 Oil Suction Hose Ø24*300,Curved  1
48 760-377 Hose Clamp 1” 2
49 730-619 O Seal Ring Ø15*1.9 1
55 720-840 Bored Nut M22 2
56 330-677 Wheel Axel   2
57 330-524 Wheel  D.O.T. Tubeless, 16*4.8*8 in. 2
58 720-836 Castle Nut ZP, 1-14 2
59 760-744 Split Pin ZP, Ø4*50 4
60 330-631 Dust Cap   2
61 760-269  Split Pin  ZP, Ø2.5*20  1
62 320-801  Vertical Lock Lever  ZP, Ø15*323 1
63 320-802  Vertical Lock Spring  ZP, Ø18*75  1
64 750-525  Flat Washer  ZP, M10  1
65 710-516  Hex Head Bolt  ZP, M10*20  1
66 760-679 Spring Clip ZP, Ø3 1
67 760-254 Clevis Pin ZP, Ø15*120 1
68 710-580 Hex Head Bolt ZP, M10*75  2
69 750-525 Flat Washer  ZP, M10 4
70 720-120 Lock Nut ZP, M10 2
71 320-444 Tongue WD 1
72 320-845 Horizontal Beam Lock WD 1
73 710-568 Hex Head Bolt ZP, M10*70  2
74 750-525 Flat Washer ZP, M10 4
75 720-120 Lock Nut ZP, M10 2
76 320-477 Jack Stand   1
77 720-120 Lock Nut ZP, M10 1
78 750-525 Flat Washer ZP, M10 2
79 710-580 Hex Head Bolt ZP, M10*75  1
80 760-679 Spring Clip ZP, Ø3 1
81 760-152 Clevis Pin ZP, Ø10*70 1
82 320-420 Hitch Coupler 2”*2” 1
83 320-421 Safety Chain 2
84 710-433 Hex Head Bolt ZP, M12*75  2
85 750-621 Flat Washer  ZP, M12 4
86 720-536 Lock Nut ZP, M12 2
87 320-942 Log Tray Plate WD 2
88 320-940 Log Tray Frame (FR, BL) WD 2
89 320-948 Log Tray Frame (FL, BR) WD 2
90 720-120 Lock Nut ZP, M10 4
91 750-525 Flat Washer  ZP, M10 8
92 710-556 Hex Head Bolt ZP, M10*45  4
93 710-520 Hex Head Bolt ZP, M10*25  8
94 750-525 Flat Washer  ZP, M10 16
95 720-120 Lock Nut ZP, M10 8
96 320-926 Log Dislodger (L) 1
97 320-927 Log Dislodger (R) 1
98 710-438 Hex Head Bolt ZP, M12*35  4
99 750-621 Flat Washer  ZP, M12 8
100 720-536 Lock Nut ZP, M12 4
101 320-949 Dislodger Top Plate 1
102 710-516 Hex Head Bolt ZP, M10*20 4
103 750-401 Spring Washer ZP, M10 4
104 750-525 Flat Washer  ZP, M10 4
105 710-661 Hex Head Bolt ZP, M8*25 2
106 310-248 Manual Caddy 1
107 750-273 Flat Washer ZP, M8 2
108 720-532 Lock Nut ZP, M8 2

Customer Reviews

Based on 12 reviews
58%
(7)
8%
(1)
17%
(2)
0%
(0)
17%
(2)
C
Clyde Stokes
Simple hub caps but had trouble locating the correct size

Simple hub caps but had trouble locating the correct size. Best to always check with manufacturer that sells your brand.

Thank you for your review of our simple hub caps and, most importantly, for sharing your experience about locating the correct size. We sincerely apologize for the trouble you had finding the right fit for your unit. You are absolutely correct: for parts like these, which are model-specific, the best way is always to check directly with the manufacturer who sells your brand. We are working to improve our parts identification resources to make this process easier online. In the meantime, please always feel free to call our Sales Team directly at 800-780-2677 or email us at sales@boss-industrial.com, and we will be happy to assist you in confirming the exact part number needed for your machine. We appreciate your business and your valuable suggestion.

K
Kurt in Indy

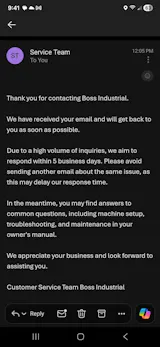

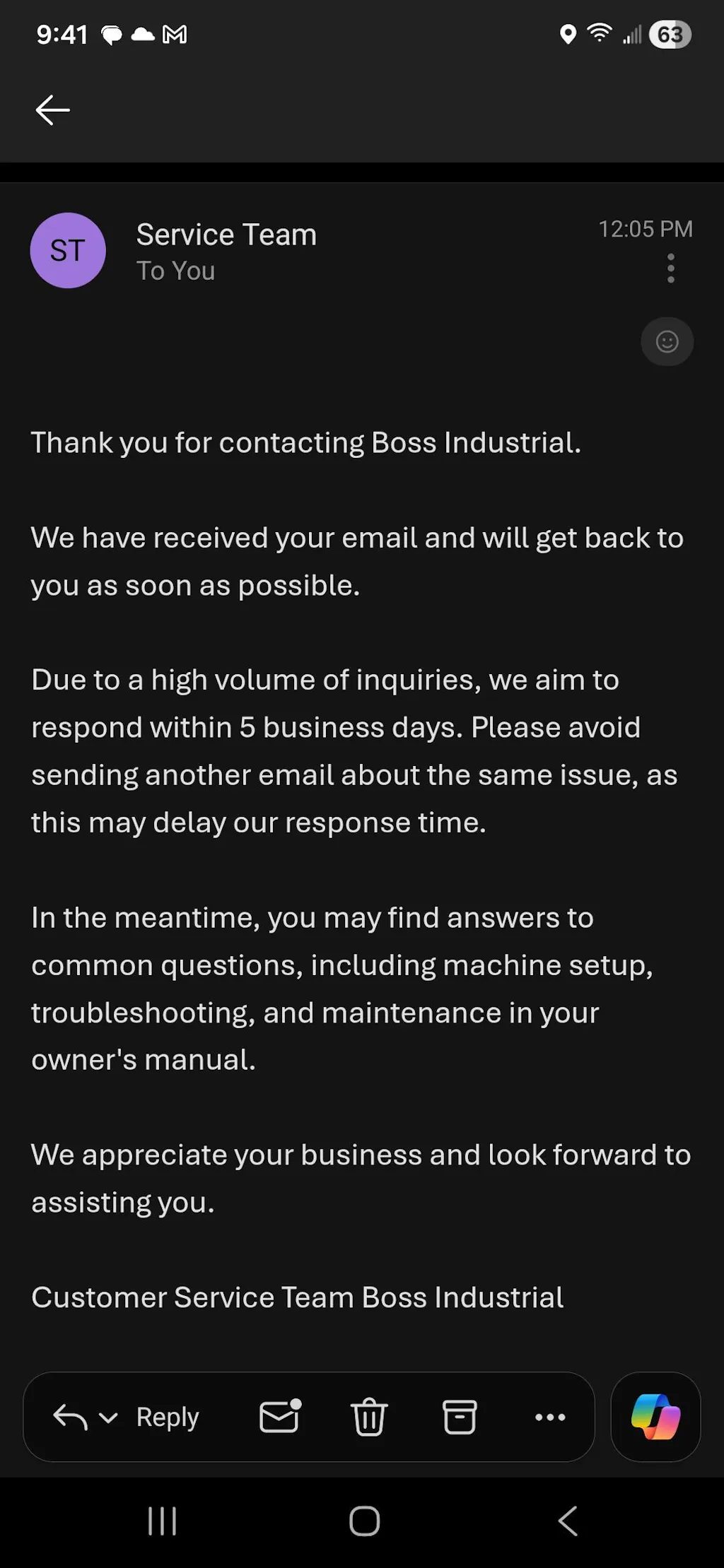

Need someone to respond to emails.
