Boss Industrial 22, 28 and 34 Ton Dual Action Log Splitter Parts GB22T25, GB28T25, GB34T25
$401.77
Boss Log Splitters
GB Parts #1-70
101 In Stock
310-632
Buy Boss Industrial 22/28/34 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

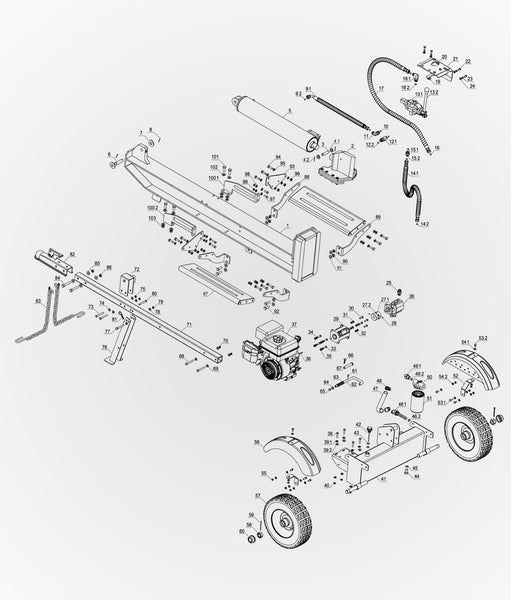

Please refer to the Table below to choose the parts correctly.
| Item | Part No. | Description | Specifications | Qty |
| 1 | 310-632 | Beam incl. End Plate 22 Ton | 10-10-10/60*40*375 | 1 |
| 310-387 | Beam incl. End Plate 28 Ton | 10-12-10/60*40*375 | ||
| 310-452 | Beam incl. End Plate 34 Ton | 12-12-12/60*50*375 | ||
| 2 | 530-427 | Splitting Wedge w/ Guides 22/28 Ton | Guide 12 | 1 |
| 530-428 | Splitting Wedge w/ Guides 34 Ton | Guide 14 | ||
| 3 | 760-118 | Pin | PH, Ø16*69-Ø4.5 | 1 |
| 4.1 | 750-566 | Flat Washer | PH. M16 | 2 |
| 4.2 | 760-734 | Split Pin | ZP, Ø4*35 | 2 |
| 5 | 530-465 | Cylinder 22 Ton | 4.0 in. | 1 |
| 530-479 | Cylinder 28 Ton | 4.5 in. | ||
| 530-481 | Cylinder 34 Ton | 5.0 in. | ||
| 6 | 760-112 | Pin | PH, Ø20*72-Ø3.5 | 1 |
| 7 | 750-423 | Flat Washer | PH, M20 | 2 |
| 8 | 760-755 | Split Pin | ZP, Ø3*40 | 2 |
| 9.1 | 560-422 | Hydraulic Hose for A-Capacity w/ Protection Spring | 1/2"*572 | 1 |
| 9.2 | 730-619 | O Seal Ring | Ø15*1.9 | 2 |
| 10 | 730-077 | O Seal Ring | Ø21*2.4 | 1 |
| 11 | 510-339 | Hydraulic Adapter for A-Capacity | 90 Degree, Hex 23, 1/2" hose | 1 |
| 12.1 | 510-467 | Hydraulic Adapter for B-Capacity | Straight, Hex 27*58 | 1 |
| 12.2 | 730-077 | O Seal Ring | Ø21*2.4 | 2 |
| 13.1 | 520-799 | Hydraulic Valve | 1 | |
| 13.2 | 520-452 | Control Handle | Ø15*220, Ball Grip | 1 |
| 14.1 | 560-454 | Connecting Hydraulic Hose w/ Protection Spring | 1/2"*900 | 1 |
| 14.2 | 730-619 | O Seal Ring | Ø15*1.9 | 2 |
| 15.1 | 730-088 | O Seal Ring | Ø24*2.4 | 1 |
| 15.2 | 510-448 | Hydraulic Adapter on Valve for Connecting Hose | Straight, Hex 27*36.5 | 1 |
| 16 | 730-661 | O Seal Ring | Ø21*1.9 | 2 |
| 17 | 560-521 | Oil Return Hose w/ Protection Spring | 3/4*1600 | 1 |
| 18.1 | 510-462 | Hydraulic Adapter | 90 Degree, Hex 27, 3/4" Hose | 1 |
| 18.2 | 730-088 | O Seal Ring | Ø24*2.4 | 1 |
| 19 | 520-536 | Handle Release Lever | 1 | |
| 20 | 520-575 | Extension Spring | Ø9*99 | 1 |
| 21 | 350-226 | Valve Cover | 1 | |
| 22 | 710-637 | Hex Head Bolt | ZP, M8*20 (8.8) | 4 |
| 23 | 750-834 | Spring Washer | ZP, M8 | 4 |
| 24 | 750-638 | Flat Washer | ZP, M8 | 4 |
| 25 | 510-432 | Hydraulic Adapter on Pump for Connecting Hose | Straight, Hex 27*45 | 1 |
| 26 | 550-412 | Two Stage Pump | 11 gpm (22/28T) | 1 |
| 550-533 | Two Stage Pump | 16 gpm (34T) | ||
| 27.1 | 550-702 | Coupling Shaft | 3/4" (22/28T) | 1 |
| 550-703 | Coupling Shaft | 1" (34T) | ||
| 27.2 | 550-706 | Coupling Spider | 1 | |
| 28 | 740-600 | Set Screw | Black Oxide, M6*10 | 2 |
| 29 | 550-814 | Pump Mount | AI, 22T, 28T | 1 |
| 550-817 | Pump Mount | AI, 34T | ||
| 30 | 710-637 | Hex Head Bolt | ZP, M8*20 (8.8) | 4 |
| 31 | 750-638 | Flat Washer | ZP, M8 | 4 |
| 32 | 750-834 | Spring Washer | ZP, M8 | 4 |
| 33 | 710-632 | Hex Head Bolt | ZP, 5/16-24*20 (8.8) | 4 |
| 34 | 750-617 | Flat Washer | ZP, 5/16 | 4 |
| 35 | 750-844 | Spring Washer | Zinc, 5/16 | 4 |
| 36 | 770-123 | Engine Shaft Square Key | 3/16 x 1.75 (22T/28T) | 1 |
| 770-125 | Engine Shaft Square Key | 1/4 x 2.165 (34T) | ||
| 37 | 960-246 | Gas Engine (Subaru 5.7) | 22T | 1 |
| 960-259 | Gas Engine (Subaru 7) | 28T | ||
| 960-261 | Gas Engine (Subaru 9) | 34T | ||
| 38 | 710-693 | Hex Head Bolt | ZP, M8*40 (22T/28T) | 4 |
| 710-553 | Hex Head Bolt | ZP, M10*40 (34T) | ||
| 39.1 | 750-638 | Flat Washer | ZP, M8 (22/28T) | 8 |
| 750-525 | Flat Washer | ZP, M10 (34T) | ||
| 39.2 | 960-429 | Vibration Isolator 22/28 Ton | Ø24*Ø9*3 | 4 |
| 960-430 | Vibration Isolator 34 Ton | Ø24*Ø11*3 | ||
| 40 | 720-500 | Lock Nut | ZP, M8 (22/28T) | 4 |
| 720-120 | Lock Nut | ZP, M10 (34T) | ||
| 41 | 540-911 | Reservoir Tank | 22/28T | 1 |
| 540-972 | Reservoir Tank | 34T | ||
| 42 | 540-328 | Vented Dipstick | Ø4*83 | 1 |
| 43 | 730-655 | O Seal Ring | Ø15*3.1 | 2 |
| 44 | 710-877 | Oil Drain Screw | PH, M16*15 | 1 |
| 45 | 730-064 | O Seal Ring | Ø20*2.4 | 1 |
| 46.1 | 540-049 | Suction Filter | 45 Degree Adapter, Hex 32 | 1 |
| 46.2 | 730-122 | O Seal Ring | Ø30*3.1 | 1 |
| 47 | 560-342 | Oil Suction Hose | Ø24*300, Curved | 1 |
| 48 | 760-377 | Hose Clamp | 1" | 2 |
| 49.1 | 510-421 | Hydraulic Adapter for Oil Return Hose | Straight, Hex 32*43, 3/4" hose | 1 |
| 49.2 | 730-122 | O Seal Ring | Ø30*3.1 | 1 |
| 50 | 540-053 | Filter Cap | AI | 1 |
| 51 | 540-086 | Filter Screw-on | 22/28T, Ø93*130 | 1 |
| 540-089 | Filter Screw-on | 34T, Ø93*210 | ||
| 52 | 330-674 | Fender Support | 2 | |
| 53.1 | 710-661 | Hex Head Bolt | ZP, M8*25 (8.8) | 2 |
| 53.2 | 710-637 | Hex Head Bolt | ZP, M8*20 (8.8) | 6 |
| 54.1 | 750-699 | Flat Washer | ZP, Ø9*Ø24*1.5 | 2 |
| 54.2 | 750-638 | Flat Washer | ZP, M8 | 14 |
| 55 | 720-500 | Lock Nut | ZP, M8 | 8 |
| 56 | 330-612 | Fender | 2 | |
| 57 | 330-515 | Wheel | Tubeless, 16*4.8*8" | 2 |
| 58 | 720-836 | Castle Nut | ZP, 1-14 | 2 |
| 59 | 760-744 | Split Pin | ZP, Ø4*50 | 2 |
| 60 | 330-631 | Dust Cap | 2 | |
| 61 | 760-269 | Split Pin | ZP, Ø2.5*20 | 1 |
| 62 | 320-800 | Vertical Lock Lever | ZP, Ø15*315 | 1 |
| 63 | 320-802 | Vertical Lock Spring | ZP, Ø18*75 | 1 |
| 64 | 750-525 | Flat Washer | ZP, M10 | 1 |
| 65 | 710-516 | Hex Head Bolt | ZP, M10*20 (8.8) | 1 |
| 66 | 760-688 | Spring Clip | ZP, Ø2.5 | 1 |
| 67 | 760-157 | Clevis Pin | PH, Ø16*85 | 1 |
| 68 | 710-580 | Hex Head Bolt | ZP, M10*75 (8.8) | 2 |
| 69 | 750-525 | Flat Washer | ZP, M10 | 4 |
| 70 | 720-120 | Lock Nut | ZP, M10 | 2 |
| 71 | 320-427 | Tongue | 50*50*3*1570 | 1 |
| 72 | 320-843 | Horizontal Beam Lock | 1 | |
| 73 | 710-568 | Hex Head Bolt | ZP, M10*70 (8.8) | 2 |
| 74 | 750-525 | Flat Washer | ZP, M10 | 4 |
| 75 | 720-120 | Lock Nut | ZP, M10 | 2 |
| 76 | 320-476 | Jack Stand | 1 | |
| 77 | 710-580 | Hex Head Bolt | ZP, M10*75 (8.8) | 1 |
| 78 | 750-525 | Flat Washer | ZP, M10 | 2 |
| 79 | 720-120 | Lock Nut | ZP, M10 | 1 |
| 80 | 760-152 | Clevis Pin | PH, Ø10*70 | 1 |
| 81 | 760-679 | Spring Clip | ZP, Ø3 | 1 |
| 82 | 320-420 | Hitch Coupler | 2"*2" | 1 |
| 83 | 320-421 | Safety Chain | 2 | |
| 84 | 710-433 | Hex Head Bolt | ZP, M12*75 (8.8) | 2 |
| 85 | 750-621 | Flat Washer | ZP, M12 | 4 |
| 86 | 720-536 | Lock Nut | ZP, M12 | 2 |
| 87 | 320-938 | Log Tray Plate | 2 | |
| 88 | 320-930 | Log Tray Frame (FL,BR) | 2 | |
| 89 | 320-931 | Log Tray Frame (FL,BR) | 2 | |
| 90 | 720-536 | Lock Nut | ZP, M12 | 4 |
| 91 | 750-621 | Flat Washer | ZP, M12 | 8 |
| 92 | 710-511 | Hex Head Bolt | ZP, M12*45 (8.8) | 4 |
| 93 | 320-925 | Log Dislodger | 2 | |
| 94 | 710-518 | Hex Head Bolt | ZP, M10*30 (8.8) | 12 |
| 95 | 750-525 | Flat Washer | ZP, M10 | 24 |
| 96 | 720-120 | Lock Nut | ZP, M10 | 12 |
| 97 | 710-520 | Hex Head Bolt | ZP, M10*25 (8.8) | 4 |
| 98 | 750-525 | Flat Washer | ZP, M10 | 8 |
| 99 | 720-120 | Lock Nut | ZP, M10 | 4 |
| 100.1 | 320-929 | Dislodger Support R | 1 | |
| 100.2 | 320-928 | Dislodger Support L | 1 | |
| 101 | 710-438 | Hex Head Bolt | ZP, M12*35 | 4 |
| 102 | 750-621 | Flat Washer | ZP, M12 | 8 |
| 103 | 720-536 | Lock Nut | ZP, M12 | 4 |
