Boss Industrial 5 Ton Electric Log Splitter Parts (EC5T20)

Boss Industrial 5 Ton Electric Log Splitter Parts (EC5T20)

$152.47

Boss Log Splitters

EC5T20 Parts

100 In Stock

310-443

-
+

Buy Boss Industrial 5 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

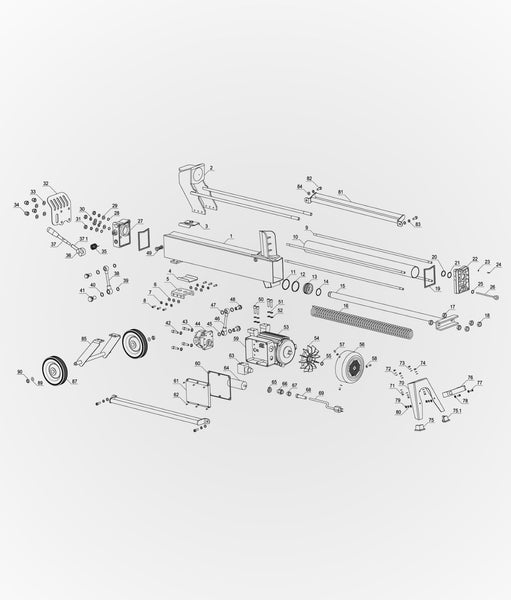

Please refer to the Table below to choose the parts correctly.



Item Part No. Description Specifications Qty
1 310-443 Machine Body w/ End Wedge (Refurbished) 5 ton 1
2 530-413 Ram Cap & Shaft   1
3 530-475 Upper Nylon Cushion   1
4 530-898 Lower Nylon Cushion   1
5 530-833 Base Plate of Ram   1
6 750-160 Flat Washer Black Oxide, M8*1 6
7 750-075 Spring Washer Black Oxide, M8*2.5 6
8 710-095 Inner Hex Bolt Black Oxide, M8*25 6
9 710-685 Double-Screw Bolt M10*813*2.5 4
10 530-322 Cylinder Tube Ø55*743 1
11 730-847 O Seal Ring Ø55*3.1 1
12 730-446 Seal Cover Ø55 1
13 530-624 Piston Head Ø54.5*22 1
14 730-924 O Seal Ring Ø50*3.5 1
15 530-434 Piston Shaft w/ Connecting Plate   1
16 530-580 Retracting Spring   1
17 720-156 Nut Zinc, M14 4
18 720-884 Lock Nut Zinc, M14 2
19 730-772 Paper Seal Ring   2
20 730-186 O Seal Ring Ø30*2.65 1
21 730-139 Dirt Proof Ring Ø30 1
22 540-853 Front Reservoir Cover   1
23 730-094 O Seal Ring Ø5*1 1
24 540-537 Vent Plug Zinc, M4*10 1
25 750-158 Copper Seal Washer M14*1 1
26 540-333 Oil Dipstick w/ Oil Drain Bolt Ø5*190/M14*12*1.5 1
27 520-974 Hydraulic Valve   1
28 730-198 O Seal Ring Ø14*2.4 4
29 750-532 Flat Washer Black Oxide, M10*2.5 4
30 750-355 Spring Washer Black Oxide, M10*3 4
31 720-465 Nut Black Oxide, M10 4
32 350-233 Position Shield   1
33 750-525 Flat Washer Zinc, M10*1.5 4
34 720-678 Snap Head Nut Zinc, M10 4
35 520-596 Torsion Spring   1
36 520-293 Control Handle Bracket   1
37 520-401 Control Handle Lever w/ Grip Ø12.5-116 1
520-401HK Handle Kit (#35-37.1)
37.1 520-400 Short Lever Ø12.5*54 1
38 560-586 Oil Tube Ø14-Ø10*96*2 1
39 730-624 O Seal Ring Ø18*1.9 2
40 750-158 Copper Seal Washer M14*1 2
41 710-896 Oil Tube Screw Black Oxide, M14*30*1.5 2
42 710-895 Inner Hex Head Bolt Black Oxide, M8*20 4
43 750-075 Flat Washer Black Oxide, M8*2.5 4
44 550-203 Hydraulic Pump   1
45 730-624 O Seal Ring Ø18*1.9 1
46 560-586 Oil Tube Ø14-Ø10*96*2 1
47 750-158 Copper Seal Washer M14*1 3
48 710-896 Oil Tube Screw Black Oxide, M14*30*1.5 2
49 540-311 Oil Filter   1
50 710-541 Inner Hex Head Bolt Black Oxide, M8*30 4
51 750-075 Spring Washer Black Oxide, M8*2.5 4
52 750-160 Flat Washer Black Oxide, M8*1 4
53 940-610 Electric Motor 1.8 HP   1
54 910-194 Fan   1
55 760-548 Circlip for Shaft Ø16 1
56 910-154 Fan Cover Ø162 1
57 750-270 Flat Washer Zinc, M4*1 3
58 740-477 Cross Recess Pan Head Screw Zinc, M4*10 3
59 920-011 Connecting Box (Bottom)   1
60 920-506 Connecting Box (Rubber Ring)   1
61 920-853 Connecting Box (Cover)   1
62 740-603 Cross Recess Pan Head Screw Black Oxide, M4*10 6
63 920-943 Power Switch   1
64 920-980 Capacitor 60uf 1
65 930-800 Whole Cable Fastener   1
66
67
68 930-511 Cable Bushing   1
69 930-182 Power Cable STJW 3/C 14AWG, Ø2.08*1600 1
70 320-815 Front Leg   1
71 740-313 Cross Recess Pan Head Screw Zinc, M6*15 4
72 750-273 Flat Washer Zinc, M6*1 8
73 750-823 Spring Washer Zinc, M6*2 4
74 720-322 Nut Zinc, M6 4
75 320-837 Bumper (R)   1
75.1 320-838 Bumper (L)   1
76 320-511 Towing Handle   1
77 740-324 Cross Recess Pan Head Screw Zinc, M6*25 2
78 750-273 Flat Washer Zinc, M6*1 4
79 720-322 Nut Zinc, M6 2
80 750-823 Spring Washer Zinc, M6*2 2
81 320-935 Log Holder   2
82 710-023 Inner Hex Head Bolt Black Oxide, M8*16 2
83 750-075 Spring Washer Black Oxide, M8*2.5 4
84 750-160 Flat Washer Black Oxide, M8*1 4
85 340-096 Wheel Frame   1
87 330-436 Wheel 6'*1.5' 2
89 750-525 Flat Washer M10*1.5 2
90 720-120 Lock Nut M10 2
