Boss Industrial 13, 16 and 20 Ton Dual Action Log Splitter Parts GD13T

Boss Industrial 13, 16 and 20 Ton Dual Action Log Splitter Parts GD13T21, GD16T21, GD20T24

$286.26

Brand : Boss Log Splitters

Product Type : GD Series Parts

Availability : 99 In Stock

SKU: 310-850

Quantity :

Buy Boss Industrial 13/16/20 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

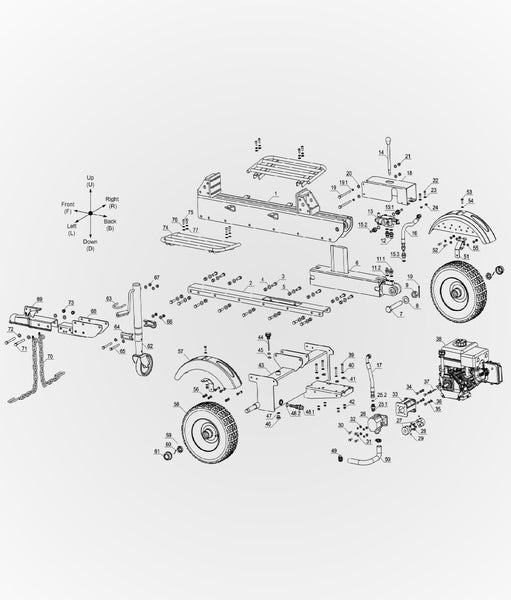

Please refer to the Table below to choose the parts correctly.

Item	Part No.	Description	Specifications	Qty
1	310-850	Machine Body incl. End Plates 13 Ton	1152986mm/13014010	1
1	310-853	Machine Body incl. End Plates 16 Ton	1303078mm/15014010	1
2	310-851	Machine Body Bottom 13 Ton	W100	1
2	310-854	Machine Body Bottom 16 Ton	W114	1
3	710-438	Hex Head Bolt	ZP, M12*35	16
4	750-621	Flat Washer	ZP, M12	16
5	720-536	Lock Nut	ZP, M12	16
6	530-480	Cylinder, 13 Ton	3.0 in.	1
	530-482	Cylinder, 16 Ton	3.5 in.
	530-484	Cylinder, 20 Ton	4.0 in.
7	760-137	Pin, 13 Ton	PH, M27*141	1
7	760-132	Pin, 16 Ton	PH, M32*165	1
8	750-623	Flat Washer, 13 Ton	PH, M27*4	1
8	750-677	Flat Washer, 16 Ton	PH, M32*6	1
9	720-815	Bored Nut, 13 Ton	PH, M27	1
9	720-872	Bored Nut, 16 Ton	PH, M32	1
10	760-744	Split Pin	Ø4*50	1
11.1	510-211	Hydraulic Adaptor	Straight, Hex24	2
11.2	730-077	O Seal Ring	Ø21*2.4	4
12	510-224	Hydraulic Adaptor	Straight Swing, Hex24/19	2
13	520-766	Hydraulic Valve		1
14	520-405	Control Handle Lever	Ø15*264	1
15.1	510-448	Hydraulic Adapter	Straight, Hex27*36.5	3
15.2	730-619	O Seal Ring	Ø15*1.9	3
15.3	730-077	O Seal Ring	Ø21*2.4	3
16	560-409	Hydraulic Hose (Valve-Reservoir)	1/2"*350	1
17	560-403	Hydraulic Hose (Pump-Valve)	1/2"*300	1
18	350-200	Valve Cover 13 Ton	W118	1
18	350-203	Valve Cover 16 Ton	W135	1
19	710-669	Hex Head Bolt 13 Ton	ZP, M10*130 (8.8)	2
19	710-614	Hex Head Bolt 16 Ton	ZP, M8*15	4
19.1	750-834	Spring washer 16 Ton	ZP, M8	4
20	750-525	Flat Washer, 13 Ton	ZP, M10	4
20	750-638	Flat Washer, 16 Ton	ZP, M8	4
21	720-120	Lock Nut 13 Ton	ZP, M10	2
22	710-637	Hex Head Bolt	ZP, M8*20 (8.8)	2
23	750-638	Flat Washer	ZP, M8	2
24	720-500	Lock Nut	ZP, M8	2
25.1	510-432	Hydraulic Adapter on Pump for Connecting Hose	Straight, Hex27*45	1
25.2	730-619	O Seal Ring	Ø15*1.9	1
26	550-308	Two Stage Pump	9 gpm (13T)	1
26	550-412	Two Stage Pump	11 gpm (16T)	1
27	550-702	Coupling Shaft	3/4"	1
28	550-706	Coupling Spider		1
29	740-600	Set Screw	Black Oxide, M6*10	2
30	710-637	Hex Head Bolt	ZP, M8*20 (8.8)	4
31	750-834	Spring Washer	ZP, M8	4
32	750-638	Flat Washer	ZP, M8	4
33	550-814	Pump Mount	Al	1
34	710-632	Hex Head Bolt	ZP, 5/16-24*20 (8.8)	4
35	750-844	Spring Washer	Zinc, 5/16	4
36	750-617	Flat Washer	ZP, 5/16	4
37	770-123	Engine Shaft Square Key	3/16 x 1.75	1
38	960-327	Gas Engine (Kohler 6.5)		1
39	710-693	Hex Head Bolt	ZP, M8*40	4
40	750-638	Flat Washer	ZP, M8	8
41	960-429	Vibration Isolator 22/28 Ton	Ø24Ø93	4
42	720-500	Lock Nut	ZP, M8	4
43	540-910	Reservoir Tank	GD13T21, OLD GD16T21 (w/ or w/o fender frame, mounting bracket W: 86mm)	1
	540-963	Reservoir Tank	New GD16T21 (w/o fender frame, mounting bracket W: 101mm)
	540-949	Reservoir Tank	GD20T24 (w/o fender frame, mounting bracket W: 115mm)
44	540-328	Vented Dipstick	Ø4*83	1
45	730-655	O Seal Ring	Ø15*3.1	2
46	710-877	Oil Drain Screw	PH, M16*15	1
47	730-064	O Seal Ring	Ø20*2.4	1
48.1	540-074	Suction Filter	Straight Adapter, Hex32	1
48.2	730-602	O Seal Ring	Ø28*3.1	1
49	760-377	Hose Clamp	1"	2
50	560-315	Oil Suction Hose	Ø24*320	1
51	330-674	Fender Support		2
52	710-661	Hex Head Bolt	ZP, M8*25 (8.8)	2
53	710-637	Hex Head Bolt	ZP, M8*20 (8.8)	6
54	750-699	Flat Washer	ZP, Ø9Ø241.5	2
55	750-638	Flat Washer	ZP, M8	14
56	720-500	Lock Nut	ZP, M8	8
57	330-612	Fender		2
58	330-524	Wheel	Pneumatic, 164.88 in.	2
59	720-836	Castle Nut	ZP, 1-14	2
60	760-744	Split Pin	ZP, Ø4*50	2
61	330-631	Dust Cap		2
62	TJ-20	Wheeled Trailer Jack		1
63	710-333	U-bolt	ZP, M10 x 190	1
64	320-457	Jack Clamp 13 Ton	W26	2
64	320-459	Jack Clamp 16 Ton	W35.5	2
65	710-669	Hex Head Bolt	ZP, M10*130 (8.8)	2
66	750-525	Flat Washer	ZP, M10	6
67	720-120	Lock Nut	ZP, M10	4
68	320-431	Tongue		1
69	320-437	Hitch Coupler	2"*3"	1
70	320-421	Safety Chain		2
71	710-622	Hex Head Bolt	ZP, M12*100 (8.8)	2
72	750-621	Flat Washer	ZP, M12	4
73	720-536	Lock Nut	ZP, M12	2
74	320-913	Log Tray		2
75	710-895	Inner Hex Head Bolt	Black Oxide, M8*20	8
76	750-075	Spring Washer	Black Oxide, M8	8
77	750-160	Flat Washer	Black Oxide, M8	8
