Buy Boss Industrial 7 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you, 800-780-2677

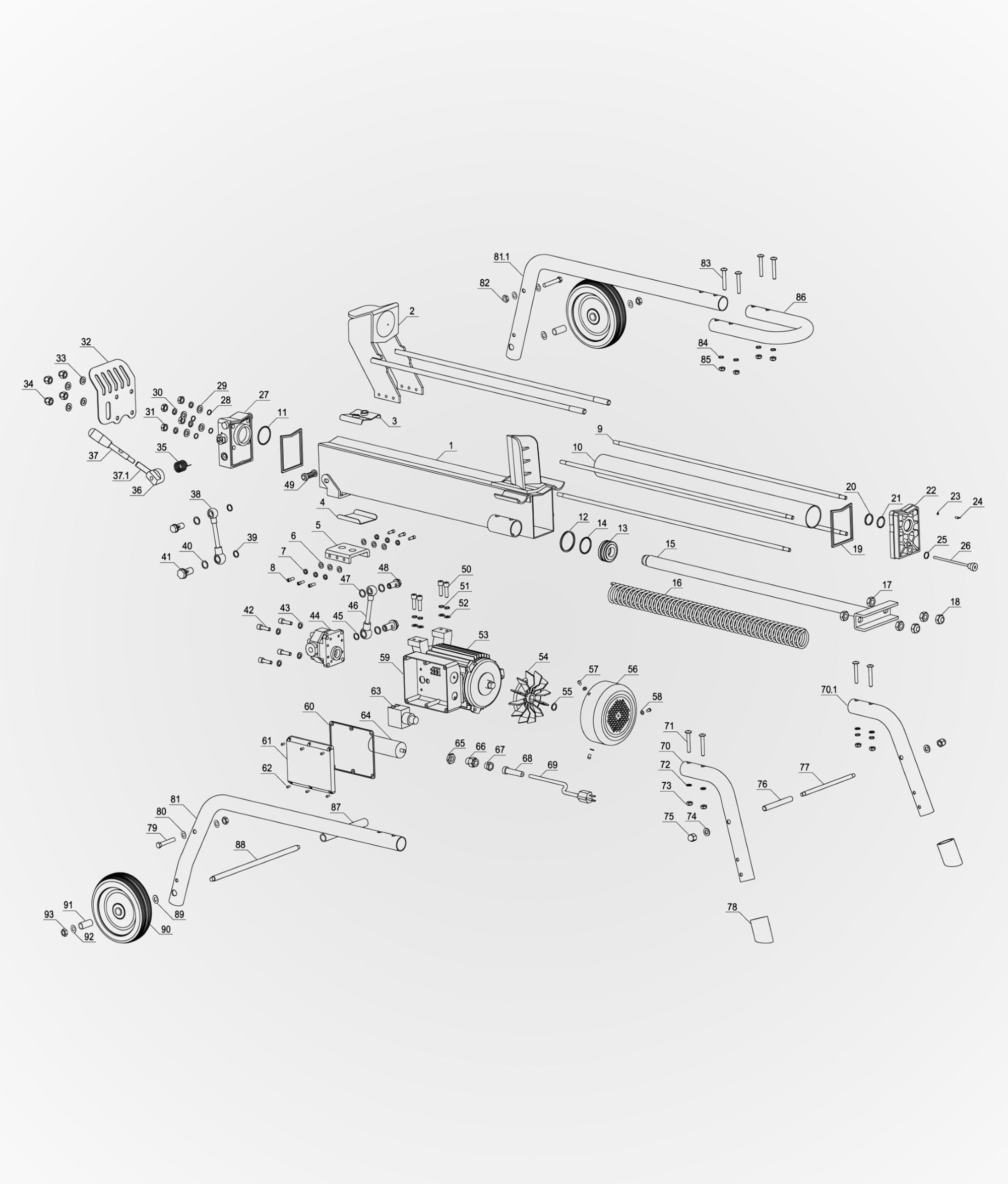

Please refer to the Table below to choose the parts correctly.
| Item | Part No. | Description | Specifications | Qty |
| 1 | 310-325 | Machine Body w/ End Wedge (Refurbished) | 7 ton | 1 |
| 2 | 530-101O | Ram Cap & Shaft | Pre 2016 Models | 1 |
| 530-101N | Ram Cap & Shaft | 2016+ Models | ||
| 3 | 530-475 | Upper Nylon Cushion | 1 | |
| 4 | 530-898 | Lower Nylon Cushion | 1 | |
| 5 | 530-616 | Base Plate of Ram | 1 | |
| 6 | 750-520 | Flat Washer | Black Oxide, M10*1.5 | 6 |
| 7 | 750-355 | Spring Washer | Black Oxide, M10*3 | 6 |
| 8 | 710-432 | Inner Hex Bolt | Black Oxide, M10*25 | 6 |
| 9 | 710-685 | Double-Screw Bolt | M10*813 | 4 |
| 10 | 530-322 | Cylinder Tube | Ø55*743*2.5 | 1 |
| 11 | 730-847 | O Seal Ring | Ø55*3.1 | 1 |
| 12 | 730-446 | Seal Cover | Ø55 | 1 |
| 13 | 530-624 | Piston Head | Ø54.5*22 | 1 |
| 14 | 730-924 | O Seal Ring | Ø50*3.5 | 1 |
| 15 | 530-434 | Piston Shaft w/ Connecting Plate | 1 | |
| 16 | 530-580 | Retracting Spring | 1 | |
| 17 | 720-156 | Nut | Zinc, M14 | 4 |
| 18 | 720-884 | Lock Nut | Zinc, M14 | 2 |
| 19 | 730-772 | Paper Seal Ring | 2 | |
| 20 | 730-186 | O Seal Ring | Ø30*2.65 | 1 |
| 21 | 730-139 | Dirt Proof Ring | Ø30 | 1 |
| 22 | 540-853 | Front Reservoir Cover | 1 | |
| 23 | 730-094 | O Seal Ring | Ø5*1 | 1 |
| 24 | 540-537 | Vent Plug | Zinc, M4*10 | 1 |
| 25 | 750-158 | Copper Seal Washer | M14*1 | 1 |
| 26 | 540-333 | Oil Dipstick w/ Oil Drain Bolt | Ø5*190/M14*12*1.5 | 1 |
| 27 | 520-974 | Hydraulic Valve | 1 | |
| 28 | 730-198 | O Seal Ring | Ø14*2.4 | 4 |
| 29 | 750-532 | Flat Washer | Black Oxide, M10*2.5 | 4 |
| 30 | 750-355 | Spring Washer | Black Oxide, M10*3 | 4 |
| 31 | 720-465 | Nut | Black Oxide, M10 | 4 |
| 32 | 350-233 | Position Shield | 1 | |
| 33 | 750-525 | Flat Washer | Zinc, M10*1.5 | 4 |
| 34 | 720-678 | Snap Head Nut | Zinc, M10 | 4 |
| 35 | 520-596 | Torsion Spring | 1 | |
| 36 | 520-293 | Control Handle Bracket | 1 | |
| 37 | 520-401 | Control Handle Lever w/ Grip | Ø12.5*116 | 1 |
| 520-401HK | Handle Kit (#35-37.1) | |||
| 37.1 | 520-400 | Short Lever | Ø12.5*54 | 1 |
| 38 | 560-587 | Oil Tube | Ø14-Ø10*100*2 | 1 |
| 39 | 730-624 | O Seal Ring | Ø18*1.9 | 2 |
| 40 | 750-158 | Copper Seal Washer | M14*1 | 2 |
| 41 | 710-896 | Oil Tube Screw | Black Oxide, M14*30*1.5 | 2 |
| 42 | 710-895 | Inner Hex Head Bolt | Black Oxide, M8*20 | 4 |
| 43 | 750-075 | Flat Washer | Black Oxide, M8*2.5 | 4 |
| 44 | 550-203 | Hydraulic Pump | 1 | |
| 45 | 730-624 | O Seal Ring | Ø18*1.9 | 1 |
| 46 | 560-587 | Oil Tube | Ø14-Ø10*100*2 | 1 |
| 47 | 750-158 | Copper Seal Washer | M14*1 | 3 |
| 48 | 710-896 | Oil Tube Screw | Black Oxide, M14*30*1.5 | 2 |
| 49 | 540-311 | Oil Filter | 1 | |
| 50 | 710-541 | Inner Hex Head Bolt | Black Oxide, M8*30 | 4 |
| 51 | 750-075 | Flat Washer | Black Oxide, M8*2.5 | 4 |
| 52 | 750-160 | Flat Washer | Black Oxide, M8*1 | 4 |
| 53 | 940-611 | Electric Motor 2 HP | YY80AL-2, 110 Volt, 2.0HP, 60 Hz | 1 |
| 54 | 910-194 | Fan | 1 | |
| 55 | 760-548 | Circlip for Shaft | Ø16 | 1 |
| 56 | 910-154 | Fan Cover | Ø162 | 1 |
| 57 | 750-270 | Flat Washer | Zinc, M4*1 | 3 |
| 58 | 740-477 | Cross Recess Pan Head Screw | Zinc, M4*10 | 3 |
| 59 | 920-011 | Connecting Box (Bottom) | 1 | |
| 60 | 920-506 | Connecting Box (Rubber Ring) | 1 | |
| 61 | 920-853 | Connecting Box (Cover) | 1 | |
| 62 | 740-603 | Cross Recess Pan Head Screw | Black Oxide, M4*10 | 6 |
| 63 | 920-943 | Power Switch | 1 | |
| 64 | 920-980 | Capacitor | 60uf | 1 |
| 65 | 930-800 | Whole Cable Fastener | 1 | |
| 66 | ||||
| 67 | ||||
| 68 | 930-511 | Cable Bushing | 1 | |
| 69 | 930-182 | Power Cable | STJW 3/C 14AWG, Ø2.08*1600 | 1 |
| 70 | 320-812 | Front Leg (R) | 2 | |
| 70.1 | 320-811 | Front Leg (L) | 2 | |
| 71 | 740-526 | Cross Recess Pan Head Screw | Zinc, M8*55 | 4 |
| 72 | 750-638 | Flat Washer | Zinc, M8*1 | 4 |
| 73 | 720-500 | Lock Nut | Zinc, M8 | 4 |
| 74 | 750-525 | Flat Washer | Zinc, M10*1.5 | 2 |
| 75 | 720-678 | Snap Head Nut | Zinc, M10 | 2 |
| 76 | 320-666 | Front Support Bar Bushing | Ø13*1*105 | 1 |
| 77 | 320-563 | Front Support Bar | Ø10*205 | 1 |
| 78 | 320-825 | Bumper | 2 | |
| 79 | 740-526 | Cross Recess Pan Head Screw | Zinc, M8*55 | 2 |
| 80 | 750-638 | Flat Washer | Zinc, M8*1 | 4 |
| 81 | 320-414 | Joint Leg and Log Holder (R) | 2 | |
| 81.1 | 320-413 | Joint Leg and Log Holder (L) | 2 | |
| 82 | 720-500 | Lock Nut | Zinc, M8 | 2 |
| 83 | 740-526 | Cross Recess Pan Head Screw | Zinc, M8*55 | 4 |
| 84 | 750-638 | Flat Washer | Zinc, M8*1 | 4 |
| 85 | 720-500 | Lock Nut | Zinc, M8 | 4 |
| 86 | 320-748 | U Shape Towing Handle | 1 | |
| 87 | 340-090 | Wheel Axle | Ø12.7*335 | 1 |
| 88 | 340-250 | Axle Bushing | Ø16*1*168 | 1 |
| 89 | 750-146 | Flat Washer | Zinc, 1/2*2 | 2 |
| 90 | 330-214 | Wheel | 7"*1.8" | 2 |
| 91 | 340-132 | Bearing Spacer | Ø16*102*36.8 | 2 |
| 92 | 750-525 | Flat Washer | Zinc, M10*1.5 | 2 |
| 93 | 720-120 | Lock Nut | Zinc, M10 | 2 |
